Part Number:

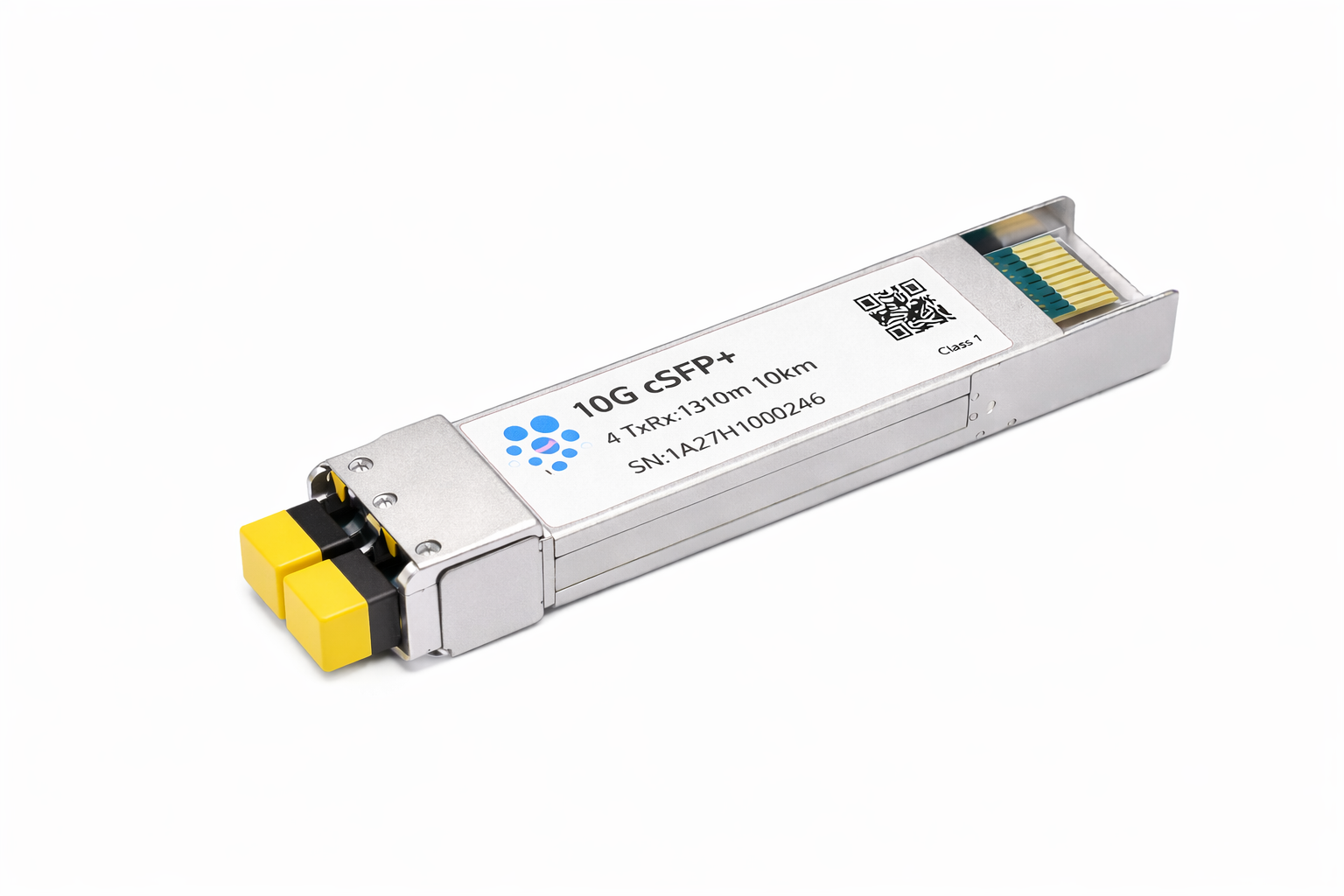

Description: Telco Photonics 10G Compact SFP+ 10km Transceiver has Two Bi-Directional 10GBASE-CSFP+ transceivers in one SFP package and Duplex LC connector. This transceiver is an ultra-low power (power consumption < 1.2W), high performance and high stability product operating in industry temperature, designed for use in 10Gigbit, multi-rate links up to 10KM of G.652 single mode fiber.This product is ideal for deploying single-fiber bi-directional transceivers in high density applications with half the size of the industry-standard SFP/SFP+ package. The modular design of this product enables configuration of integrated 2ch modules. Compliant with CSFP+ MSA 2.0 and supporting 10G Ethernet LR protocol and Fiber Channel, this product is well suited for data centre Fast Ethernet applications.

Date Rate: 2x10.3G

Component: DFB/PIN

Rec. Sens: -12dBm

Case Temp: C/I

Multi Rate: Y

Category: 10G

Package: SFP+

Wavelength: 1270/1330nm

Output Power: -5~2dBm

Connector: LC

Reach: 10KM

Application: 10GBASE-LR/LW, 10G Fibre Channel,
